From wooden blocks to carbon-ceramic
The first 'brakes' on horse-drawn carriages and early cars were a wooden block pressed against the steel rim by a lever — fine at 10 mph, useless at 30. Mechanical drum brakes appeared on the rear wheels of the 1899 Maybach. Louis Renault patented an internal-expanding shoe drum in 1902 that became the dominant pattern for half a century. Frederick Lanchester patented the disc brake in 1902, but it took until the 1949 Crosley Hot Shot to put one on a production car and the 1953 Jaguar C-Type's Le Mans win to convince the rest of the industry. Four-wheel hydraulic brakes (Duesenberg, 1921) replaced cables and rods. The Citroën DS (1955) brought disc brakes to a mainstream luxury car. Bosch shipped the first electronic ABS on the 1978 Mercedes S-Class. Brembo and AP Racing developed carbon-ceramic discs for F1 in the 1980s, and Porsche put them on the road on the 2001 911 GT2 — today they're standard on most supercars and hypercars.
How brake components are made
Cast-iron rotors are poured from a high-carbon gray iron alloy, sand-cast around vane cores that form the internal cooling fins, then machined flat and parallel to within 50 microns on the friction faces. Performance rotors are then slotted, drilled (cast or cross-drilled), or both, and the hub center is precision-ground for runout. Carbon-ceramic rotors are built up from chopped carbon fiber and resin, baked into a green disc, then infiltrated with molten silicon in a 1,700 °C vacuum furnace where the silicon reacts with the carbon to form silicon carbide — the process takes weeks. Calipers are gravity-die-cast or forged aluminum (high-end Brembo, AP Racing, Akebono) machined to receive stainless or titanium pistons, square-section O-rings, and braided-steel hose fittings. Pads are mixed as a friction-compound 'dough,' bonded to a steel backing plate, hot-pressed under tons of force, then cured in an oven and bedded on a test rig before packaging.
How brakes are tested
Brake validation lives on inertia dynos: a massive rotating mass simulates the kinetic energy of a real car, the brake clamps it to a stop, and a torque sensor records the deceleration curve. Engineers run FMVSS 135 (US) and ECE R13H (Europe) certification cycles for legal stopping distance and pedal effort, then go beyond with AMS (Auto Motor und Sport) 10-stop fade tests from 100 km/h to 0 with no cooldown — pass means the 10th stop is barely longer than the first. The Alpine Descent test bakes the brakes hauling a fully-loaded vehicle plus trailer down a mountain pass to find fluid boil and warpage. Carbon-ceramic candidates do back-to-back Nürburgring laps until they crack or shed mass. ABS and stability-control software is validated on low-mu surfaces — wet basalt, ice tracks, and split-mu (one side ice, other side dry) — where the algorithm has to brake each wheel optimally without spinning the car.
The different types of brakes
Drum brakes (rear of cheap econoboxes and many commercial vans): internal shoes wedge against a spinning drum; cheap and self-energizing but fade fast. Solid disc: one slab of iron; rear of light cars. Vented disc: internal vanes pump cooling air through the rotor; standard at the front of every modern car. Slotted disc: surface grooves clear pad gas and dust (Porsche GT). Cross-drilled disc: holes for cooling and looks — Porsche cast-in style is durable, aftermarket drilled-after-casting cracks under track use. Two-piece disc: aluminum hat bolted to an iron friction ring, lighter and less prone to warping (M cars, AMG, Ferrari, McLaren). Carbon-ceramic (CCB/CCM-R): half the weight of iron, fade-proof to 1,000 °C, six-figure replacement cost. Carbon-carbon (F1, Le Mans hypercars): only works above 400 °C, illegal on the street. Regenerative braking (every EV and hybrid): the drive motor becomes a generator, slowing the car and recovering energy. Brake-by-wire (hybrid Ferraris, new 911 hybrid, every Tesla): a pedal sensor commands a controller that blends regen and friction with no mechanical link.
How braking works
A brake converts kinetic energy into heat through friction. Press the pedal, a vacuum or electric booster multiplies your foot's force, the master cylinder generates hydraulic pressure, brake lines carry it to each caliper, pistons push pads against a spinning rotor, the car slows down. Stopping a 1,500 kg car from 100 km/h dumps about 580 kJ of energy — enough to boil 1.7 liters of water. Stopping a Bugatti from 250 mph dumps the equivalent of burning half a gallon of gasoline, all in 10 seconds.
The hydraulic system
Brake fluid (typically DOT 4 or DOT 5.1, a glycol-based hydraulic fluid) transmits pressure from the master cylinder to the calipers. It must resist boiling — wet boiling point of DOT 4 is around 155 °C; racing fluids like Castrol SRF push 270 °C. Fluid is hygroscopic, absorbing moisture from air over time, which lowers boiling point. That's why every workshop manual specifies a 2-year fluid flush.
Discs vs drums
Disc brakes (rotors + pads in calipers) cool quickly because they're exposed to airflow and have large surface area. They resist fade well. Drum brakes (a spinning drum with internal shoes) are cheaper, lighter, self-energizing (the shoes wedge themselves tighter under braking), and integrate the parking brake easily — but they trap heat and fade quickly. Modern cars use discs front and rear; only the lowest-cost subcompacts and some commercial vans still run rear drums.
Caliper types
Floating (sliding) calipers use one or two pistons on the inboard side; the caliper slides on pins so the outboard pad is pulled into the rotor. Simple and cheap. Fixed (opposed-piston) calipers have pistons on both sides — 4-, 6- or 8-piston designs from Brembo, AP Racing and Akebono — for stiffer, more even pad pressure. All hypercars and serious performance cars run fixed calipers.
Rotor design: vented, slotted, drilled
Solid rotors are cheap and used on the rear of light cars. Vented rotors have internal vanes that act as centrifugal fans to dump heat — standard on front brakes. Slotted rotors cut grooves into the surface to clear pad gas and dust, refreshing the friction surface (Porsche GT cars). Drilled rotors look great and shed water but can crack under sustained track use; most OEMs have moved to cast-in dimples instead.
Brake pads
Pads are a friction compound bonded to a steel backing plate. Organic/NAO pads are quiet, gentle on rotors, low dust — fine for daily use, fade quickly under heat. Semi-metallic pads contain steel fibers for better high-temp performance. Ceramic pads are quiet and produce less visible dust. Track pads (PFC, Pagid, Endless, Carbotech) have very high coefficients of friction at extreme heat but squeal cold and chew through rotors. Pad swap is the single biggest braking upgrade for a stock car.

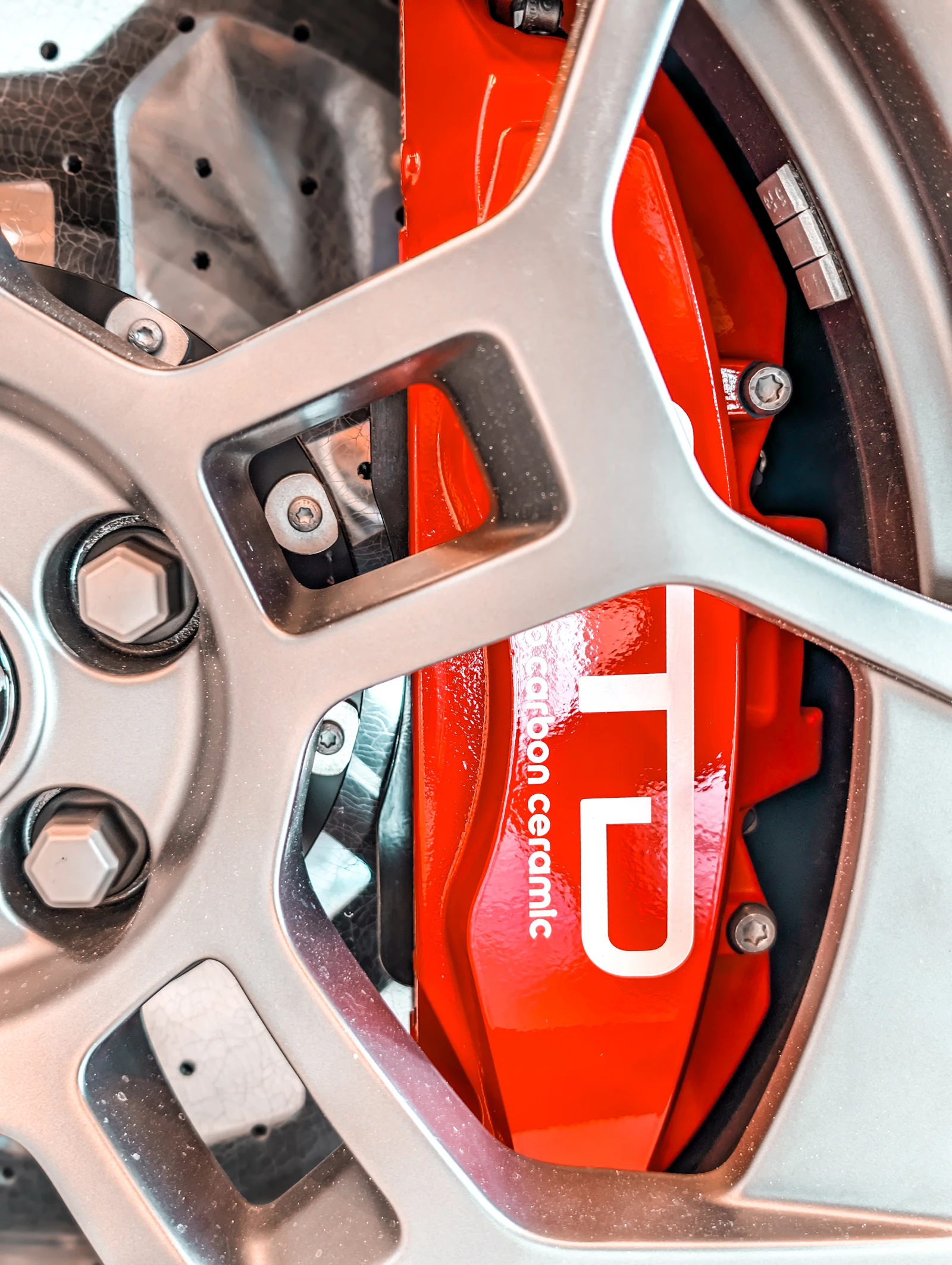

Carbon-ceramic brakes
Carbon-fiber-reinforced silicon carbide (CCB/CCM-R) rotors weigh roughly half a steel rotor, handle 1,000 °C+ without fade, and last the life of the car under normal use. Less unsprung mass means better acceleration, braking and ride quality. Standard on Porsche GT cars, Ferrari, Lamborghini, McLaren, the Corvette Z06/ZR1, AMG Black Series and most hypercars. Cost: $10,000–$30,000 a set to replace; aggressive track use can shorten life dramatically.
Brake fade
Two kinds: pad fade (the friction material's coefficient drops at extreme temperature) and fluid fade (boiling fluid creates compressible vapor — the pedal goes to the floor). High-performance pads, race fluid, ducted rotors and bigger calipers all attack fade. Engine braking and downshifts help on long descents. Cars rated for the Nürburgring (M4 CS, GT3 RS, AMG GT R) survive 20-minute laps; lesser cars overheat in two.
ABS (anti-lock)
Anti-lock braking pulses individual calipers up to 20 times per second to keep wheels just shy of locking. A locked wheel slides instead of rolls, losing both deceleration force and steering authority. ABS lets you brake at maximum force while still steering — the difference between hitting and avoiding the obstacle. Mandatory in the US since 2012 and the EU since 2004.
Electronic brake distribution (EBD) and brake assist
EBD adjusts front-to-rear bias based on load — more rear brake when the trunk is loaded, more front in light braking. Brake Assist detects panic braking from pedal speed and immediately applies maximum ABS pressure, because most drivers don't push hard enough in an emergency.
Brake-by-wire
Brake-by-wire (Alfa Giulia, hybrid Ferraris, the new Porsche 911 hybrid, every modern EV) decouples the pedal from hydraulics. A pedal travel sensor tells a controller how hard you want to stop; the controller blends friction braking and motor regen seamlessly. Drivers feel a simulated pedal via a feedback unit. The system is faster than mechanical hydraulics and can be used by adaptive cruise / AEB for full autonomous braking events.
Regenerative braking
An EV or hybrid runs its drive motor backward as a generator when you lift off or brake. Kinetic energy that would have become heat in the rotors becomes electricity back in the battery. The Porsche Taycan can recover up to 290 kW — enough to do 90% of city driving without ever touching the friction brakes. One-pedal driving modes (Nissan e-Pedal, Tesla Hold mode) regen all the way to a stop.

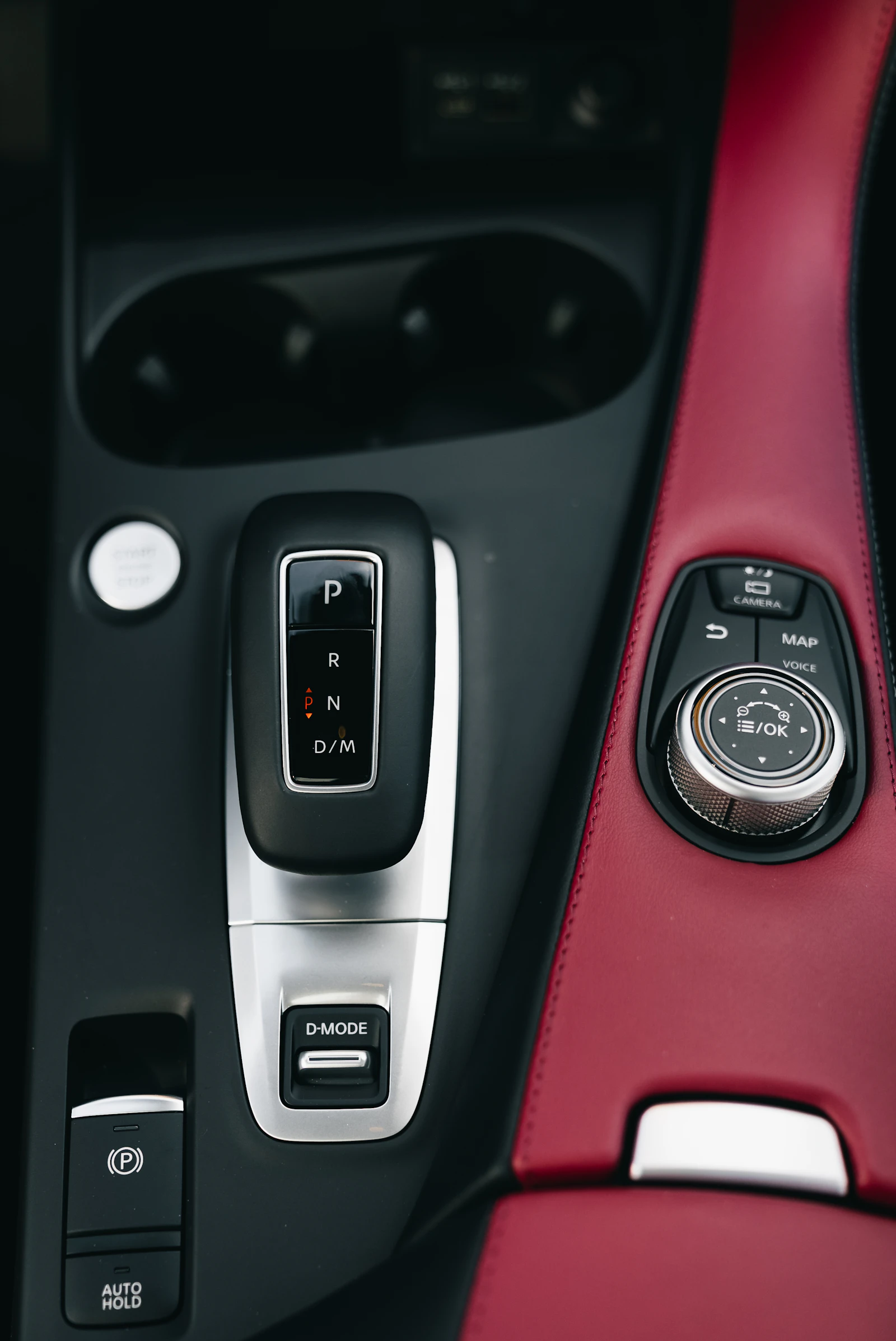

Parking brake and AEB
Modern parking brakes are electronic (EPB): a small motor on each rear caliper clamps the pads when you press a button. Hill-hold assist uses the EPB or the hydraulic system to keep the car still on slopes between brake and throttle. Automatic Emergency Braking uses radar/camera to detect imminent collisions and apply full brakes even if the driver doesn't — required on all new EU cars from 2024 and an IIHS Top Safety Pick prerequisite in the US.
